UK

THE MULTI-TOOL FOR ALL SHEET METAL FANS.

EASY AND PERFECT BENDING OF COMPLEX FORMS

YOUR MULTI-TALENTED MACHINE. THE UK.

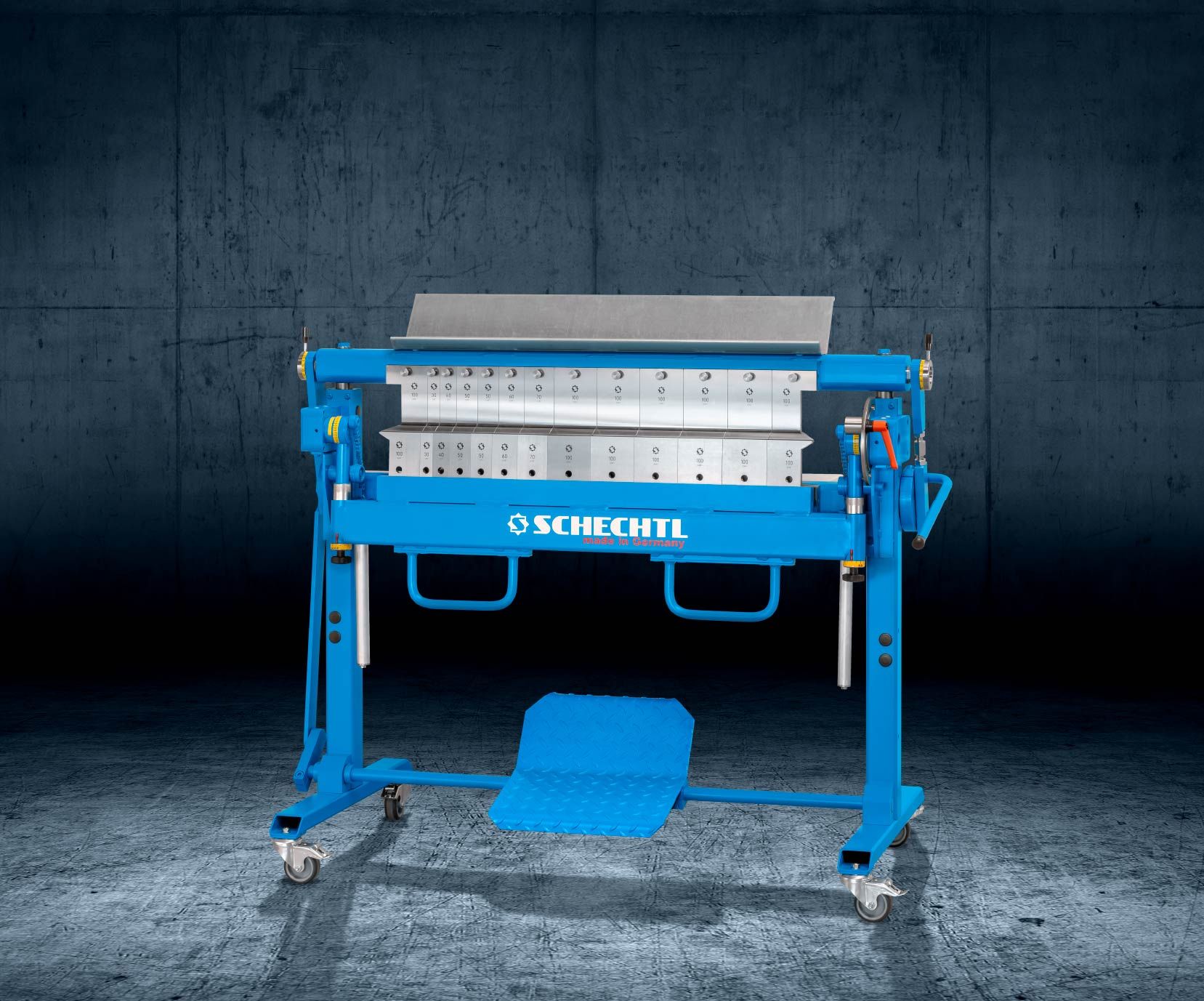

The Schechtl UK handles the production of special shapes, box and cassette forms and adjustment tasks. It can bend up to 1.50 mm steel and is available in working lengths 1 m and 1.25 m. The comprehensive range of standard equipment and many extension options make the UK a real multi-tool.

UK

image"

Benefits

WERKSTATT
SEGMENTBIEGEN
  • Segments with the original Schechtl quick clamping system

  • Tool-free adjustment of all segments supplied in the 3 areas lower, bending and clamping beam

  • Bending angle limitation for uniform, recurring bending operations

  • Quick, tool-free adjustment of the clamping beam clamping pressure

  • Tool-free adjustment of the bending beam lowering

  • Foot pedal for free-hand clamping of the workpiece

  • Practical: storage tray for the segments

  • Storage box for accessories and tools that also serves as a sheet support

  • 4 swivel castors with locking brake for mobile use in the workshop

Versions

Series equipment

Subject to change.

Add-ons

- Optimise your UK

Wishlist updated

Wishlist

Technical data

Subject to change

Select model:

UK 100 UK 125
Model
UK
100
125
Working length
mm
1000
1250
Output
Steel (400N/mm2)
Aluminium (250N/mm2)
Stainless steel (600N/mm2)
Cooper (300N/mm2)
Zinc (150N/mm2)
mm
mm
mm
mm
mm
1,50
1,25
2,25
2,00
1,00
0,80
2,00
1,50
2,00
2,00
Dimensions
Length
Depth (machine only)
Overall height
mm
mm
mm
1480
1730
740
740
1180
1180
Weight
Weight
kg
260
290
Clamping beams
Opening height
mm
96
96
