CONICAL BENDING

The Schechtl back gauge for conical bending simplifies the production of numerous sheet metal profiles. Pluggable profiles and flashings can now be produced accurately and efficiently. Time-consuming processing steps on the construction site are eliminated. The back gauge is thus ideal for applications where edge lines are required that do not run parallel. For example, for gutters, eaves plates and covers.



VIDEO CONICAL BENDING

ADVANTAGES



✔️ accurately fitting edging parts, precisely pluggable

✔️ quick, easy, gentle on material, economical to install

✔️ no further processing steps required on site

✔️ most difficult profiles immediately understandable due to display in 3D

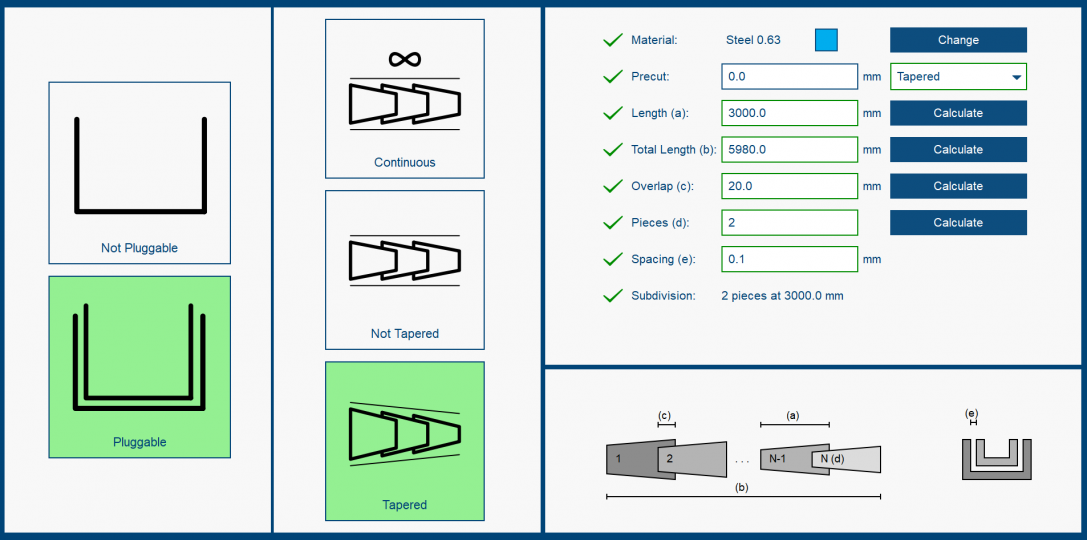

SOFTWARE



The software is clear and well thought-out.

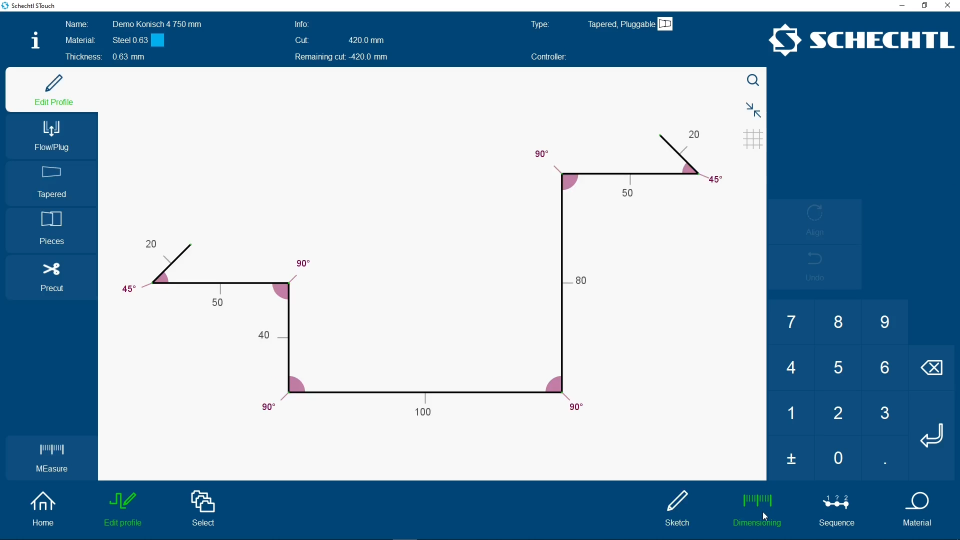

Even the most difficult profiles are immediately understandable and feasible for users.

The operator is always accompanied by menu guidance.

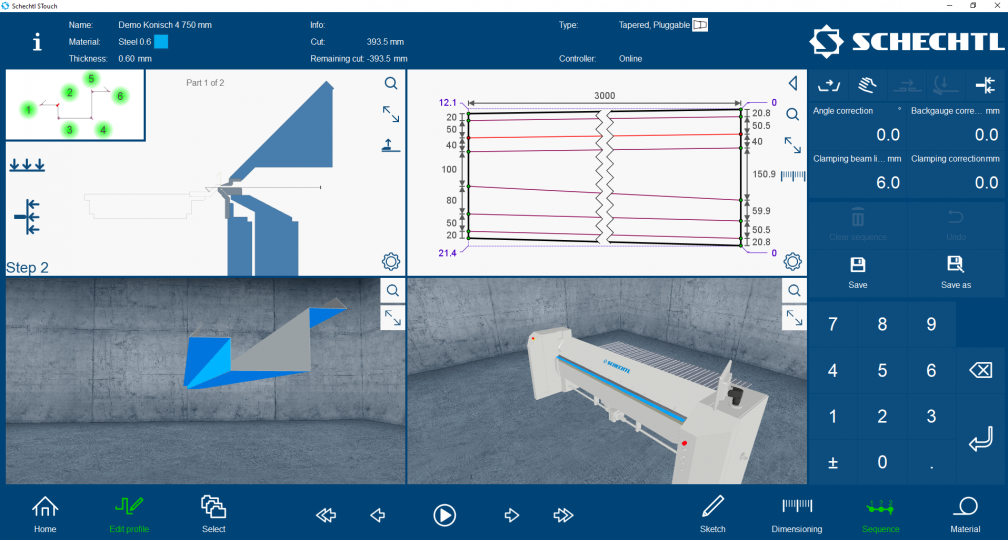

The display in 3D is a fixed and integrated component not only in the conical back gauge, but also in the standard CNC software.

The conical back gauge is available for the following motorized swivel bending machines with CNC control:

MAX, MAX-F, MAB, MAF

EXPERIENCE CONCIAL BENDING

You have questions or would like to see CONICAL BENDING live?
Then feel free to contact us or visit us at the next trade fair!
