MAE

MAE 250

The MAE 250 has a working length of 2540 mm and bends 3.50 mm steel. With its powerful spindle drive, it represents the top performance among motorized swivel bending machines.

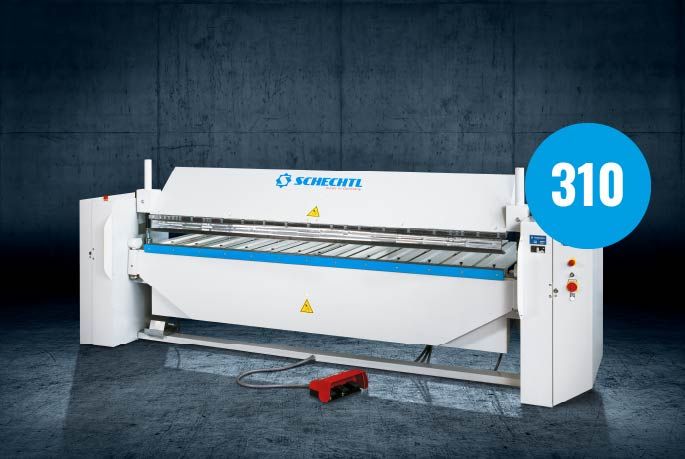

MAE 310

The MAE 310 has a working length of 3100 mm and bends 3.00 mm steel. With its powerful spindle drive, it represents the top performance among motorized swivel bending machines.

MAE 400

The MAE 400 has a working length of 4040 mm and bends 2.00 mm steel. With its powerful spindle drive, it represents the top performance among motorized swivel bending machines.

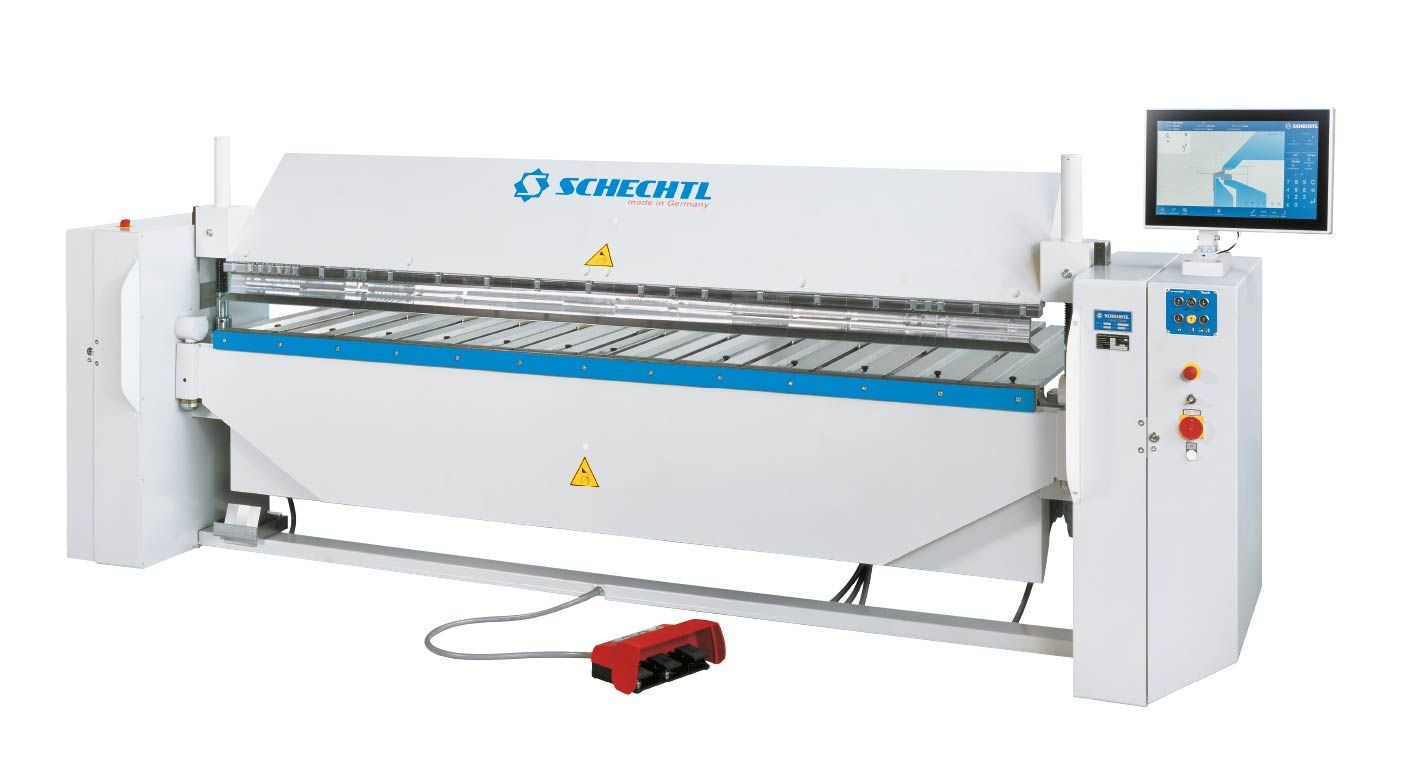

CNC S-Touch

INTUITIVE. EASY. FASTER.

Draw complex bending sequences with your fingertips and graphic control

With the CNC S-Touch, sheet metal profiles are created simply and interactively with
your fingertip on the display and detailed in a dimensioning menu. The control system recognises automatically how the workpiece needs to be turned and repositioned and which tools are required.

• 21.5″ LCD Touch colour display with high-resolution graphics
• USB port for backup and transfer of programs
• Integrated WLAN
• Remote Support (TeamViewer)
• Graphic representation of the bending process
• Graphic representation of the position of the inserted sheet before every bend
• Operator guidance in text – each work step is explained visually
• Correct profiles directly by tapping the desired limb
• Bending angle correction can be programmed
• Set repetitions for special bend radii
• Quick entry mode and sketch selection
• Cutting program for roller shear
• Permanent storage of all programs
• Freely selectable program name
• Search for profiles via name
• Select from 15 languages
• Logging of machine data and runtimes
• Bending precision and convenience through motorised backgauge 1000 mm

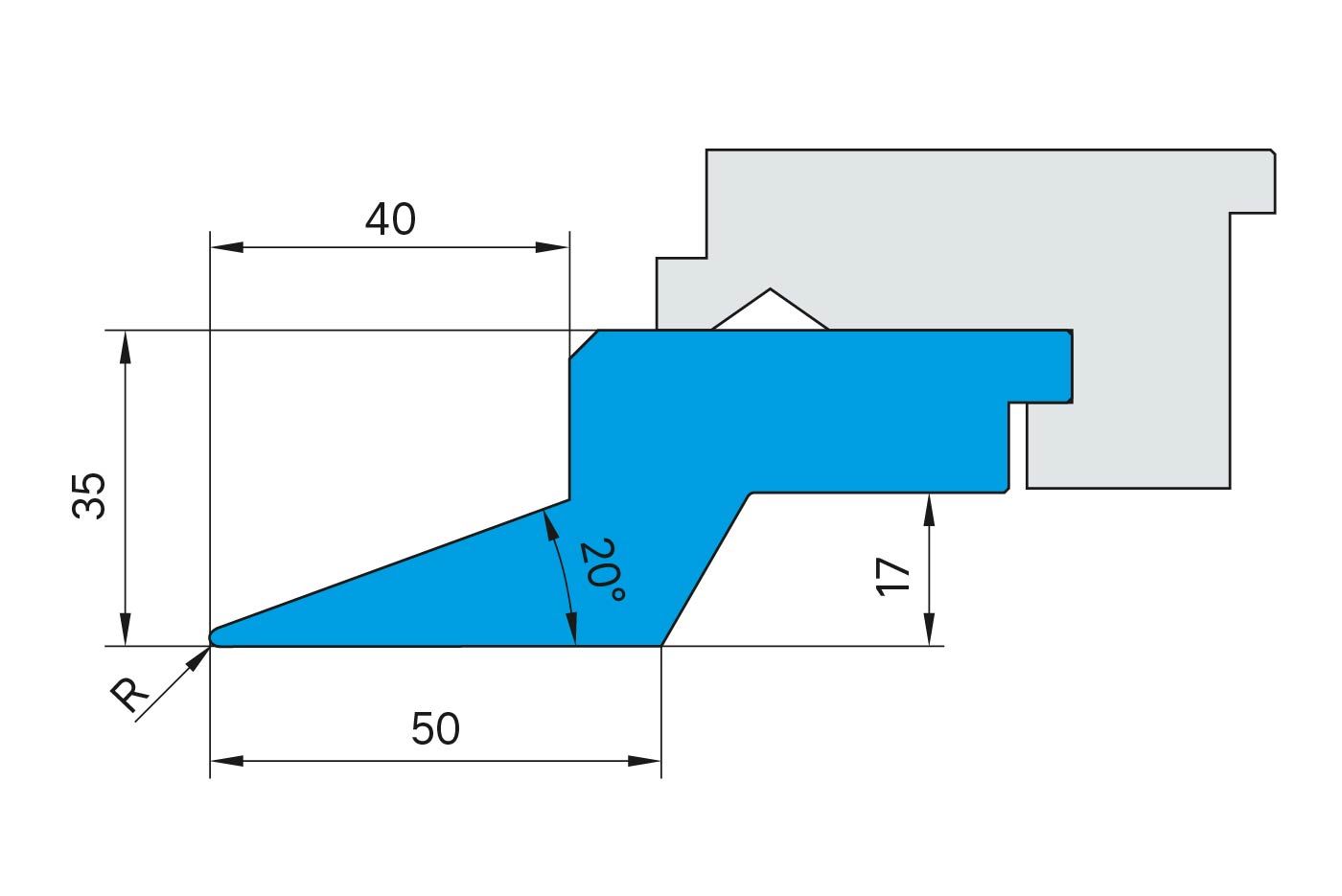

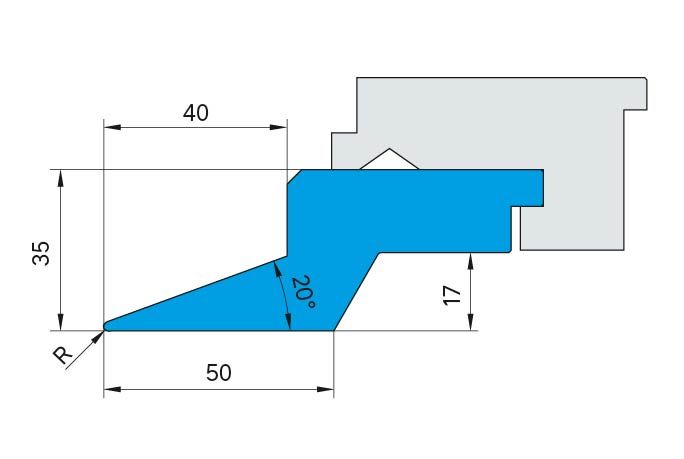

Sharp rail 20° R 1.5 mm with Click System

• Sharp rail for the clamping beam
• Radius 1.5 mm

Insert rail 10 mm

• Insert rail 68/10 mm for the bending beam

Insert rail 24 mm

• Insert rail 68/24 mm for the bending beam

Motorized backgauge 6-1000 mm

• Motorized backgauge for precise
  positioning of the sheets
• With every new bending section, the backgauge fingers automatically move to the correct position
• For optimum adjustment to the workpiece, all backgauge fingers are freely positionable over the entire bending length

Foot switch

• Moveable foot switch as an operating element
  for convenient 1-man operation
• Note: In the case of 2-man operation, the accident insurance carrier requires a second foot switch

two foot switches

• The following models are supplied with a second foot switch as standard:
• machines with a working length of 4 m
• machines with ST control and working length 2.5 m and 3 m

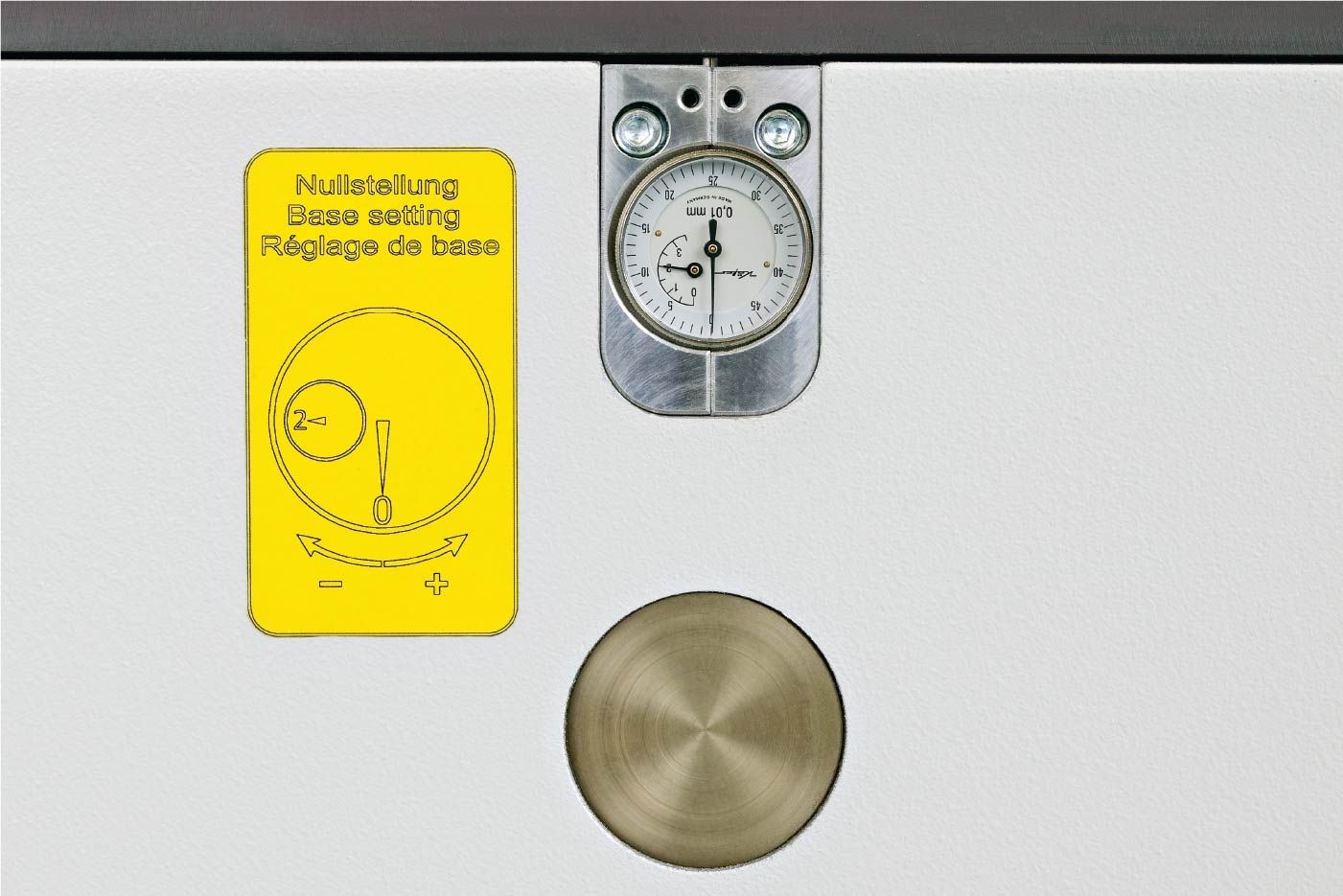

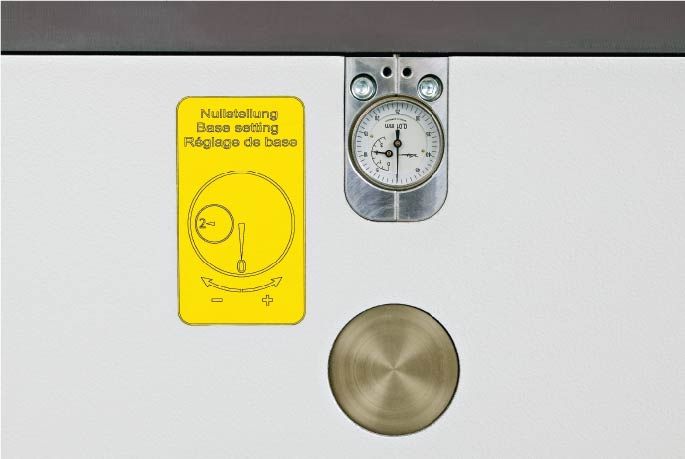

VSP manual crowning of the bending beam

• Manual adjustment of the pretension by the operator

MBA motorized bending beam lowering

• For faster bending sequences and added precision

PC offline software

For efficient task preparation at your office workstation

• The PC offline software allows you to create
  and edit profiles at the PC
• The profile data can then be transferred
  to the machine

Test it free of charge: demo licence required!

Test and experience the PC offline software for 30 days.
Simply request a free demo licence at service@schechtl.de.

Advice on rails

• Round rails, goat’s foot tooling or special rails – we would be pleased to advise you on which product is best-suited for your requirements!

Advice on backgauges

• Backgauges can be supplied in various versions
• We would be pleased to advise you on backgauge depths, forms etc.
